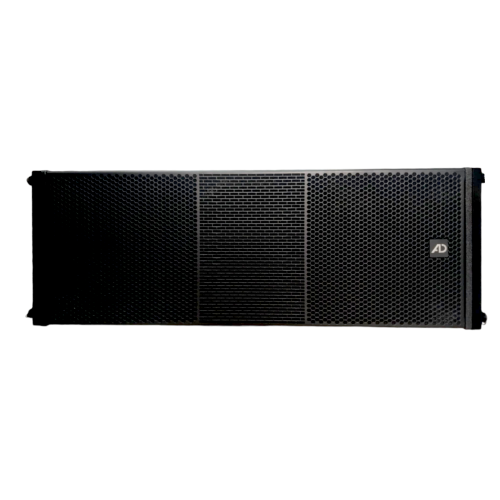

AD M212 PASSIVE LINE ARRAY

Highlights

• Bi-amp only (separate LF/HF inputs via NL4)

• High-power (nearly 1kW RMS total for LF alone)

• Narrow vertical coverage (10°) – ideal for line array or long-throw use

• Titanium compression driver for crisp HF reproduction

• Weather-resistant finish for outdoor/touring applications

• Frequency Response: 40Hz – 20kHz (±3dB)

• Coverage: 110° Horizontal x 10° Vertical

• Nominal Impedance: LF 8Ω / HF 8Ω

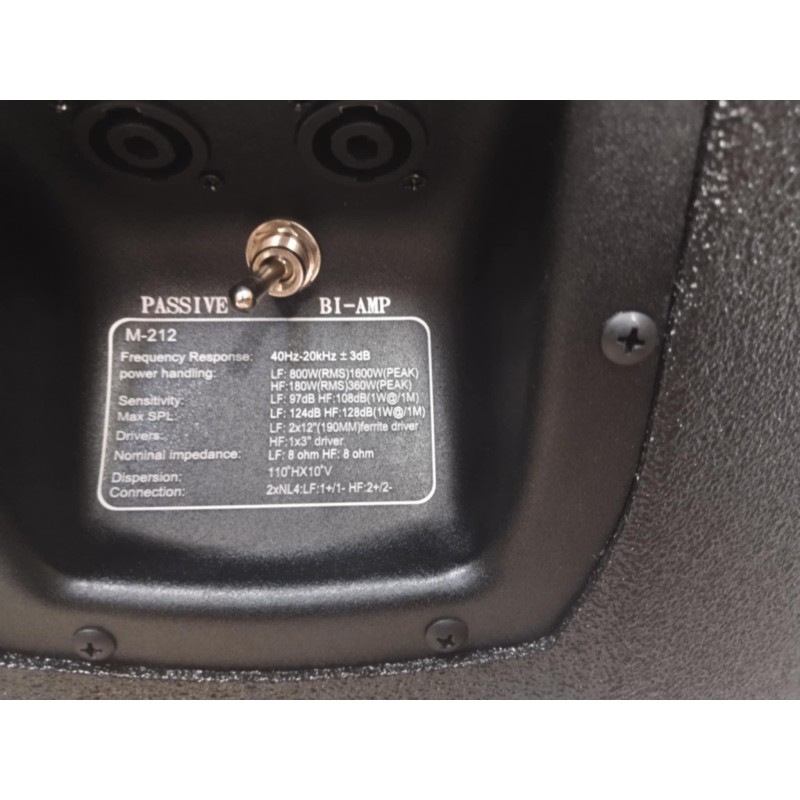

• Connectors: 2x NL4MP Speakon (LF: 1+/1-, HF: 2+/2-)

Power Handling

• LF (Low Frequency): 800W RMS / 1600W Peak

• HF (High Frequency): 180W RMS / 360W Peak

Sensitivity (1W @ 1M)

• LF: 97dB

• HF: 108dB

Maximum SPL (Peak/1M)

• LF: 124dB

• HF: 128dB

Drivers

• LF: 2 × 12" (190mm) ferrite drivers

• HF: 1 × 3" driver with 75mm titanium diaphragm

Physical & Build

• Enclosure Material: 18.5mm plywood

• Finish: High-density polyurethane painting (waterproof & scratch-resistant)

• Dimensions: 505.9 × 357.9 × 984 mm (0.18 cbm)

• Net Weight: 39 kg
