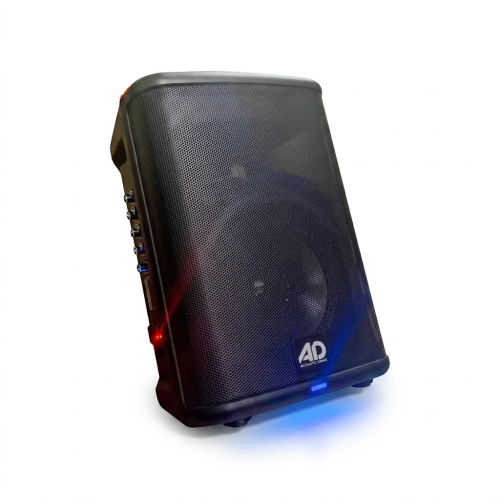

AD GIGBOX-8A BUSKING SPEAKER

AD GIGBOX-8A Portable Busking Speaker:

Technical Specifications

• System Type: 2-way active DSP-controlled portable speaker

• Amplifier: Class-D

• LF Driver: 8" woofer + 1.5" (38mm) voice coil

• HF Driver: 1.34" titanium compression driver

• Frequency Response: 60Hz–20kHz

• Max SPL: 115dB @ 1m

• Continuous Power: 300W

• Program Power: 600W

• Coverage Angle: 90° (H) x 60° (V)

• Inputs: 2 x Mic/Guitar (XLR/Combo), 1 x AUX (3.5mm) / 1 x Line (1/4" TRS)

• Bluetooth: Stereo Bluetooth®

• Battery: 18.5V 5000mAh lithium

• Power Supply: 110-120V~220-240V 50-60Hz

• Fuse: T3.15AL250V

• Cabinet Material: Injection-molded polypropylene

• Mounting: 35mm pole mount / wedge monitor

• Dimensions (h x w x d): 44 x 27.5 x 28 cm

• Net Weight: 7 kg

• Gross Weight: 8 kg

Features & Additional Information

• Advanced DSP Processing: High-precision DSP with ultra-low noise and fast signal processing. It includes 4 preset sound modes (MUSIC, FLAT, KICKBACK, MONITOR) for quick optimization. FIR filtering technology ensures transparent audio, superior stereo imaging, and phase coherence.

• Ideal Applications: Busking & Street Performances, Live Vocal & Instruments, Mobile DJs & Entertainers, Fitness / Dance Classes, Schools, Seminars & Events, and Outdoor Gatherings.
