Voltage: AC100-240V,50/60Hz

Lamp: 9R 260W

Channel: 18/16 CHS

Control Mode: DMX512

Color Wheel 1 : 1 color wheel(13 colors+open)

Color Wheel 2 : 6-colors rainbow color wheel

Prism 1 : 1 pcs effect prism(8+16+24 facets)

Prism 2: 6 facet linear prism

Frost: With frost function

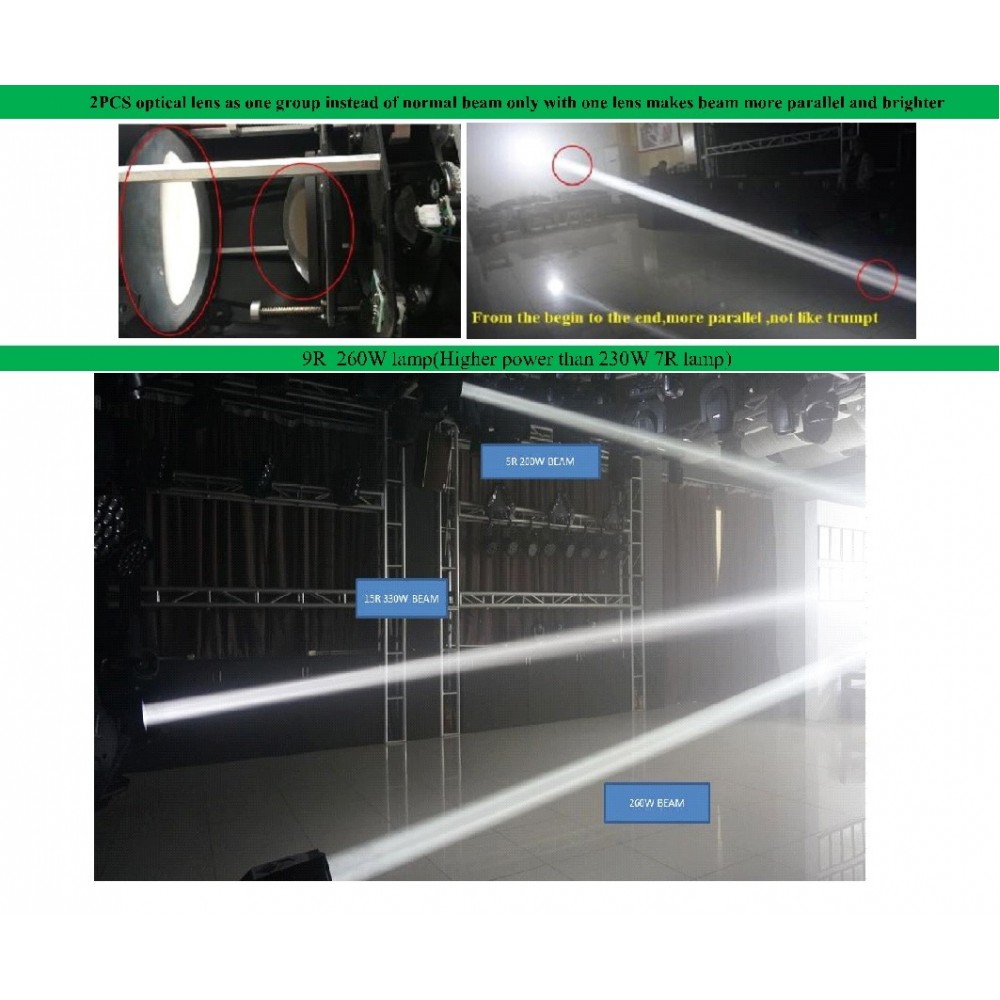

Optical Device: three lens group, 0°-5°

Pan Maximam Angle: 540°

Tilt Maximam Angle: 280°

Function specification Weinas Shape,

Weinas Software,Unique in China

5) 1PCS Fixed gobo wheel (4 glass gobos+9 metal gobos+open)

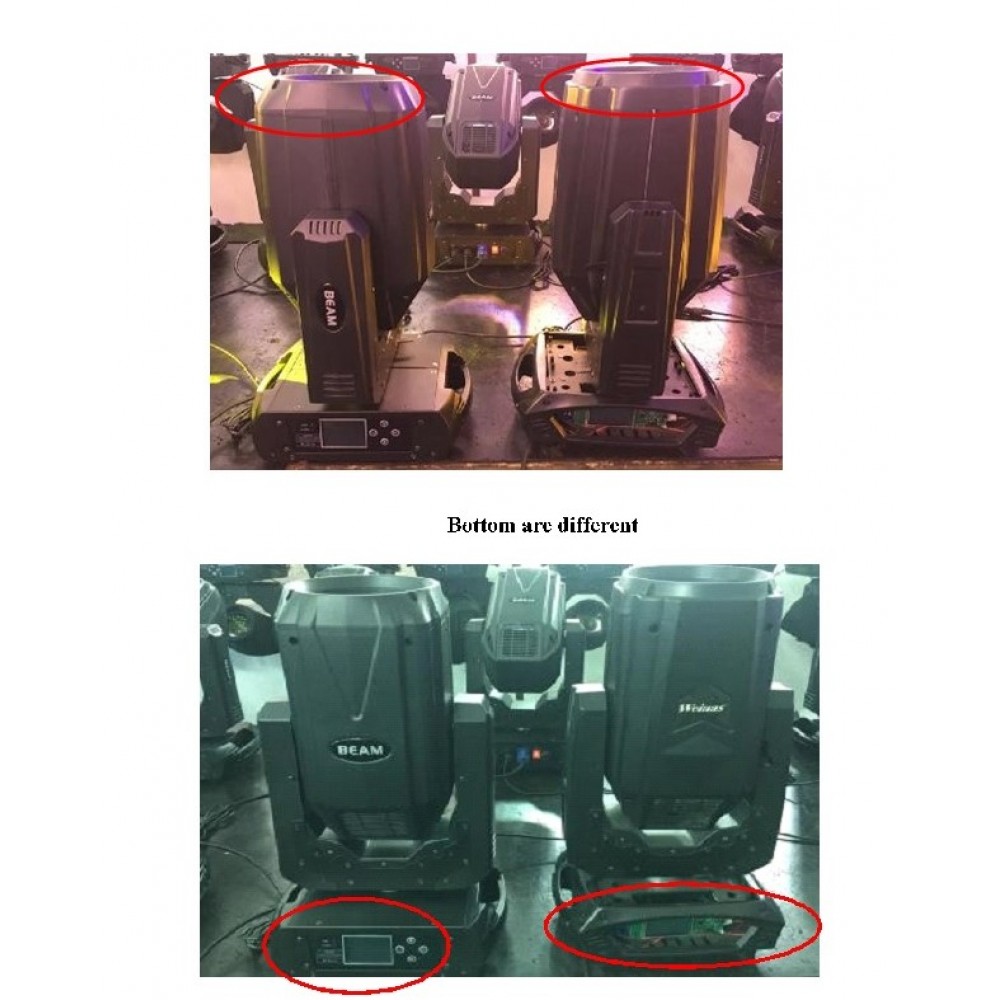

Compared with normal beam,the advantages as below

CH1(CH1) X Pan

CH2(CH2) Y Tilt

CH3 Pan fine

CH4 Tilt Fine

CH5(CH3) X/Y speed

CH6(CH4) Focus

CH7(CH5) Strobe

CH8(CH6) Dimmer

CH9(CH7) Color Wheel

CH10(CH8) Color Wheel Fine

CH11(CH9) Gobo Wheel

CH12(CH10) Gobo Shaking

CH13(CH11)

CH14(CH12)

CH15(CH13) 6 facet linear prism rotation

CH16(CH14) 6-colors rainbow color wheel

CH17(CH15) Frost

CH18(CH16) Tilt Maximam Angle: 280° Display: Colorful Touch Screen DMX CHANNELS

18/16CHS Lamp on/off and Reset
