CHANNEL FUNCTION
|
CHANNEL |
FUNCTION |
DMX VALUE |
DESCRIPTION |
|
CH1 |
Color
Wheel |
0-4 |
WHITE |
|
5-9 |
WHITE
+COLOUR1 |
||
|
10-14 |
COLOUR1 |
||
|
15-19 |
COLOUR1
+ COLOUR2 |
||
|
... |
... |
||
|
130-134 |
COLOUR13 |
||
|
135-139 |
COLOUR13
+ WHITE |
||
|
140-190 |
Ratation
from Fast to slow |
||
|
191-255 |
Ratation
from slow to fast |
||
|
CH2 |
Strobe |
0-3 |
closed |
|
4-103 |
Strobe
from slow to fast |
||
|
104-107 |
Open |
||
|
108-207 |
Pulsaton
from slow to fast |
||
|
208-212 |
Open
|
||
|
213-251 |
Random
strobe from slow to fast |
||
|
252-255 |
Open |
||
|
CH3 |
Dimmer |
0-255 |
0-100%
dimmer |
|
CH4 |
Gobo |
0-4 |
WHITE |
|
5-9 |
GOBO
1 |
||
|
10-14 |
GOBO
2 |
||
|
... |
... |
||
|
70-74 |
GOBO
14 |
||
|
75-129 |
Reverse
rotation from fast to slow |
||
|
130-134 |
Stop |
||
|
135-185 |
Forward
rotation from slow to fast |
||
|
186-190 |
Gobo
1 shake from slow to fast |
||
|
... |
... |
||
|
251-255 |
Gobo
14 shake from slow to fast |

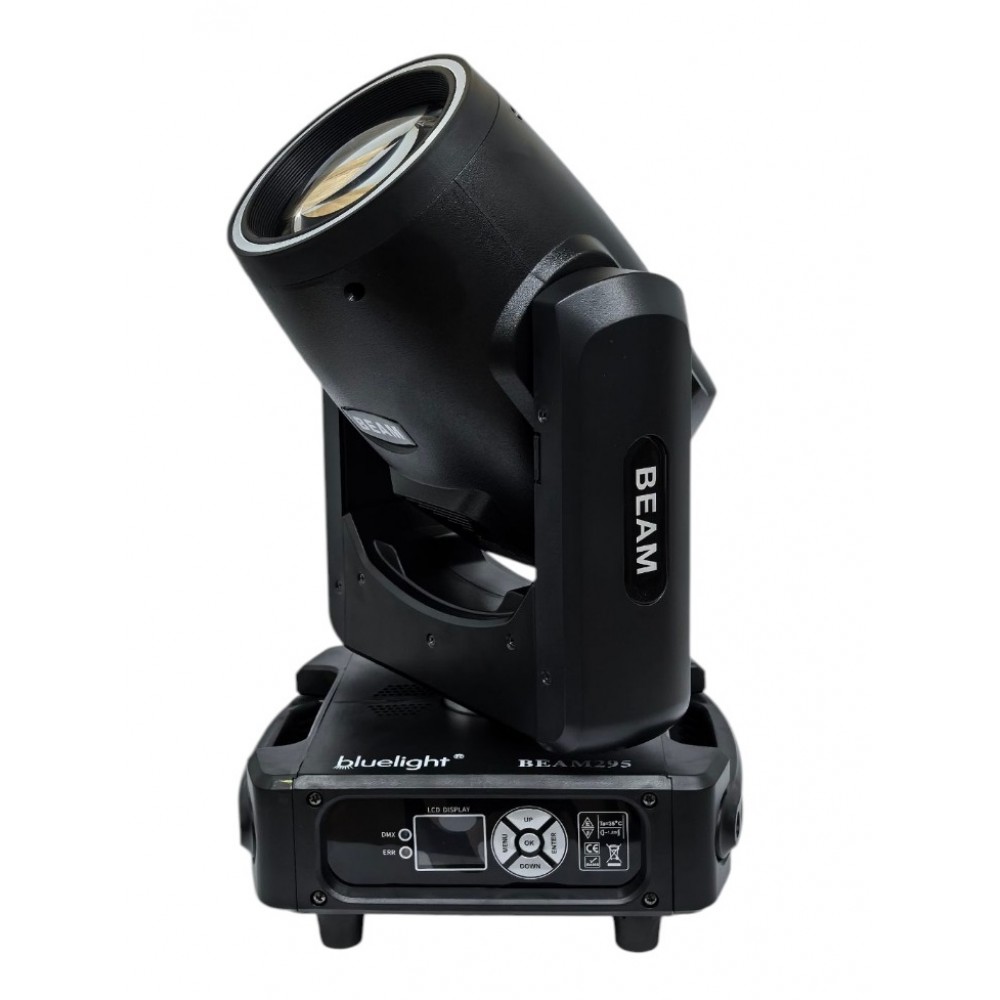

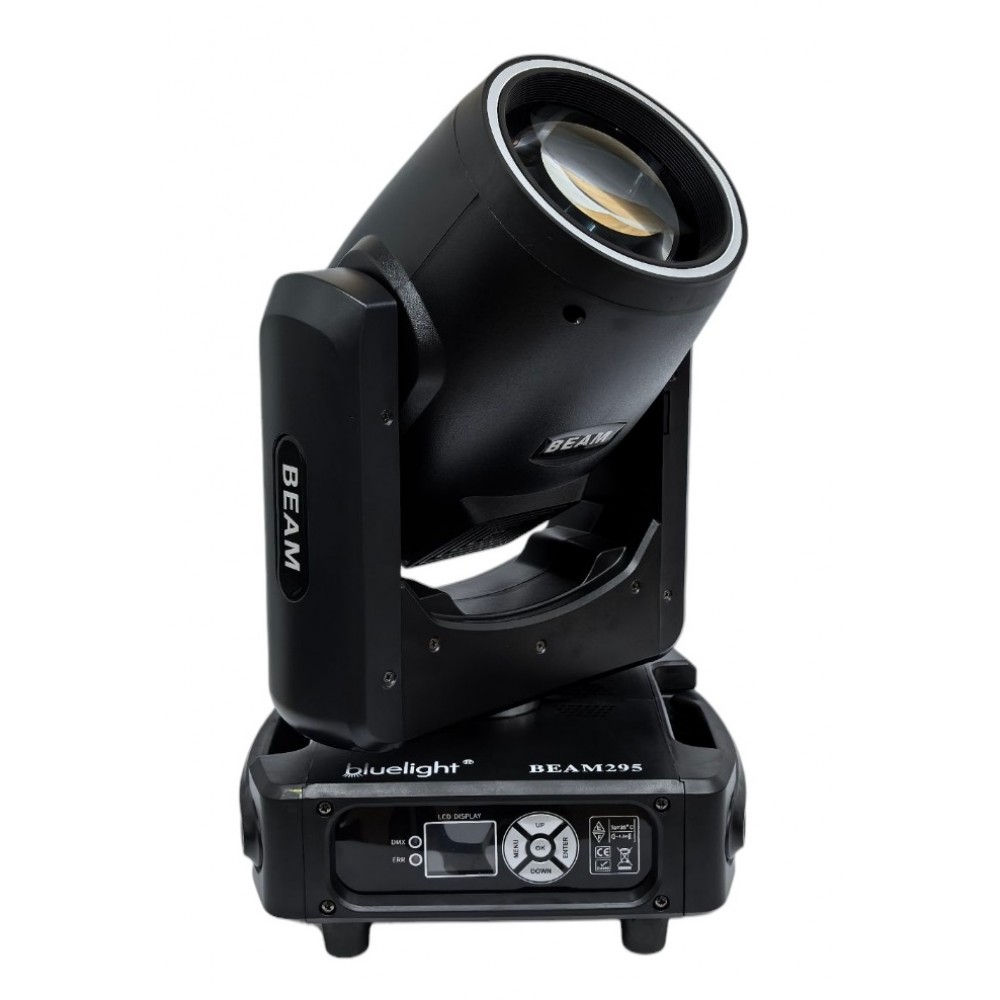

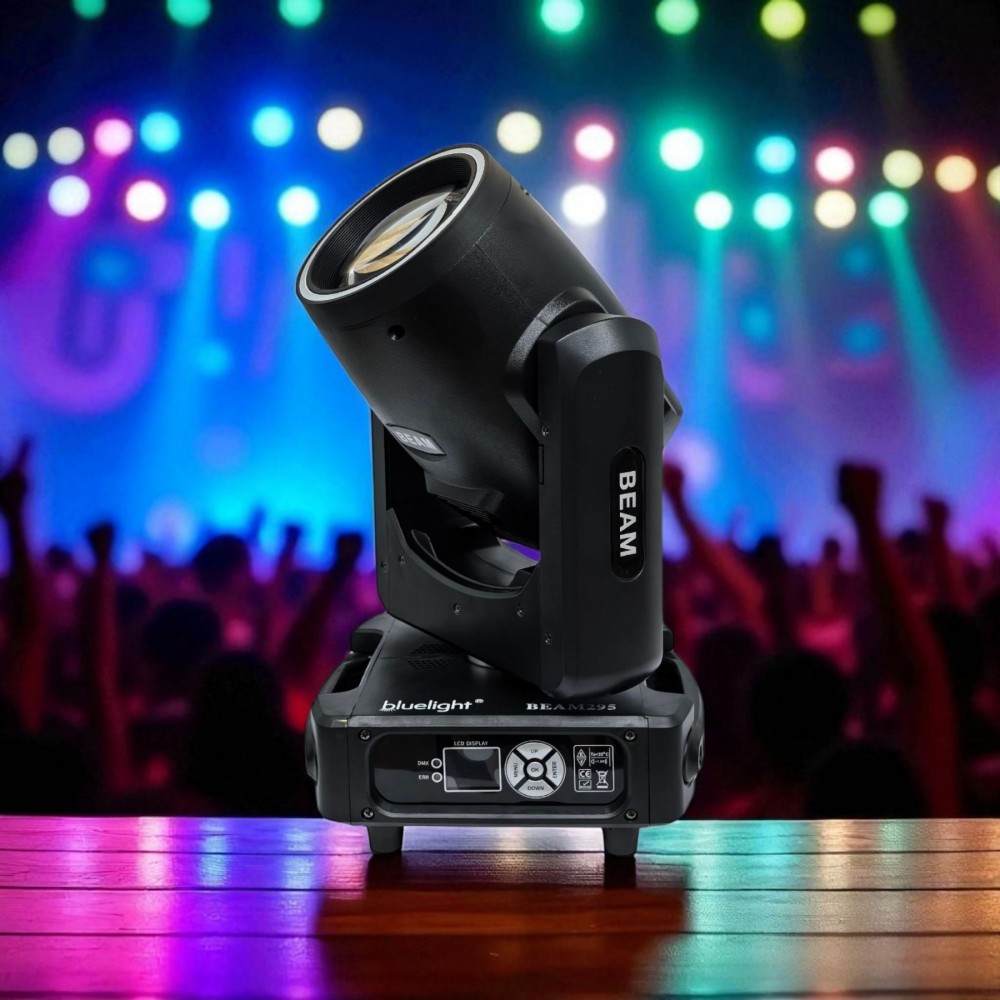

TECHNICAL SPECIFICATIONS
·Voltage: AC100-240V, 50/60Hz
·Rated Power: 350W
·Light Source 1: 295W
·Light Source 2: 27pcs 5050 LEDs light
strips (9 sections with 3pcs per section)
·Lens:High precision high-temperature
resistant glass composite lens with a diameter of 128mm for the output mirror
·Color: 13 colors+white, can achieve various
effects such as rainbow, half color, full-color, flowing; 1pcs 6 color mirror
(rainbow effect)
·Static Gobo Wheel: 14 gobo+open, with gobo
shaking and flowing effect
·Channel: 20/24 CH
·Control Mode: DMX512, Sound Active,
Auto-run (with RDM function)
·Prism: 8+8+8 prism, prism can rotate
forward and backward
·Beam Angle: 0°- 2.4° (without
prism)
·Foggy: Foggy lens, light spot is soft and
natural
·Focus: 0-100% linear focus
·Dimmer: 0-100% linear dimming
·Strobe: Single patch strobe maximum reaches15
times per second, random strobe and pulse strobe optional
·Pan: 540°(16 bit fine)
·Tilt: 270°(16 bit fine)
·IP Rate: IP20
·N/W: 10.5kg
