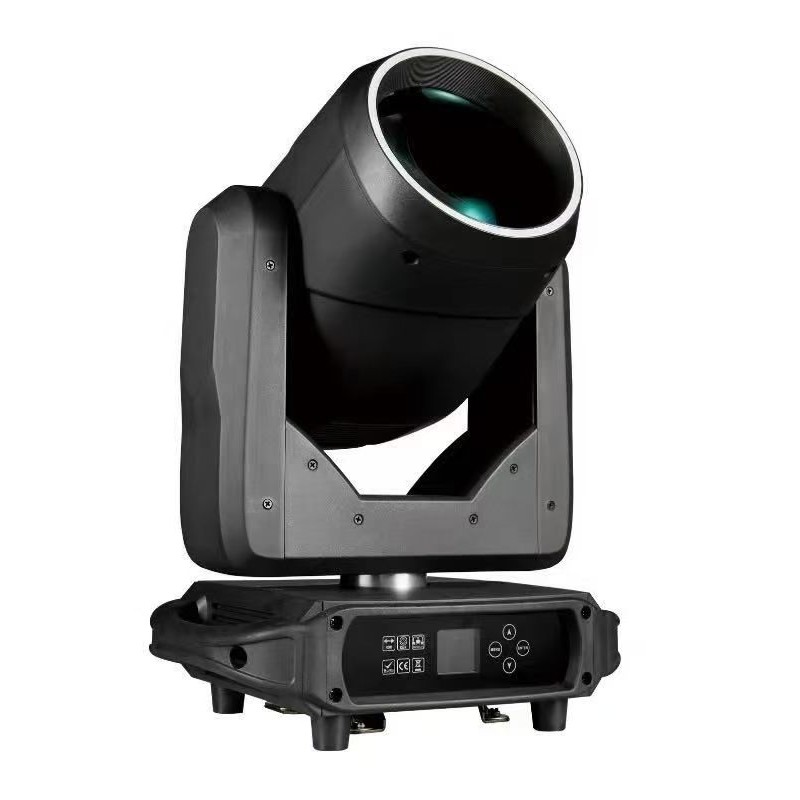

PRISM KING 380 PRO - Professional Moving Head Light
[Insert High-Quality Product Image Here]
The PRISM KING 380 PRO is a powerful and versatile moving head spotlight, designed for professional stage lighting, concerts, clubs, and events. Packed with advanced features including dual prism wheels, a color wheel, gobos, and an LED aura strip, this fixture delivers stunning visual effects and exceptional performance.
Key Features
High-Output Discharge Lamp: Delivers a bright, crisp beam for excellent projection.
Dual Prism System: Equipped with two independent prism wheels (16-facet, 8+8+8, T-prism, and more) for complex and creative multi-faceted effects.
Comprehensive Effects: Features a rotating gobo wheel, a color wheel with rainbow effect, motorized focus, and a variable strobe.
LED Aura Strip: Adds an extra dimension of lighting with a customizable RGB LED strip surrounding the lens.
Precise Control: 19/21-channel DMX control for fine-tuned adjustments of pan, tilt, colors, gobos, and prisms.
Technical Specifications
| Optical System |
|---|
| Light Source: Discharge Lamp |
| Lens: High-quality optical lens group |
| Beam Angle: Standard (adjustable with focus) |
| Focus: Motorized, adjustable from near to far |
| Dynamic Effects |
|---|
| Color Wheel: 14 dichroic colors + white, CTO filter, rainbow effect in both directions. |
| Gobo Wheel: 14 static gobos + open, with gobo shaking and rotating effects in both directions. |
| Prism Wheel 1: 16-facet prism, T-prism, 8+16+24 facet prism. (Positioning & Rotating) |
| Prism Wheel 2: 8+8+8 facet prism, T-prism, 8+16+24 facet prism. (Positioning & Rotating) |
| Combination Effects: Versatile dual-prism combination effects for unique visuals. |
| Frost / Rainbow: Independent channel for frost effect and rainbow color wheel. |
| Strobe: Electronic strobe with variable speed (1-13 flashes per second), pulse effects, and random strobe. |
| Dimmer: 0-100% linear dimming. |
| Pan/Tilt: Pan: 540° / Tilt: 270° with fine adjustment and variable speed control. |
| LED Aura System |
|---|
| Light Source: RGB LED strip surrounding the lens. |
| Functions: Independent color mixing (Red, Green, Blue dimming) and built-in color macros/effects. |
| Strobe: Independent strobe control for the LED strip. |
| Control & Programming |
|---|
| Control Protocol: DMX-512 |
| DMX Channels: 19 / 21 Channels (Selectable) |
| Display: LCD Menu with easy-to-navigate interface. |
| Reset Functions: Individual or full reset of Pan/Tilt and effects via DMX. |
| Lamp Control: Lamp on/off control via DMX. |
| Physical & Electrical |
|---|
| Housing: Rugged flame-retardant plastic and metal casing. |
| Cooling: Efficient and quiet fan cooling system. |
| Connectors: 3-pin XLR input/output, PowerCON-compatible power input/output. |
| Power Supply: Standard AC mains input (specific voltage range to be confirmed). |
