WEINAS 10000mW RGB Laser – Professional 10W Stage Laser

Take your lighting production to the next level with the WEINAS 10000mW RGB Laser, a high-output professional RGB laser system delivering a total laser power of 10,000mW (10W).

Designed for professional entertainment applications, this laser produces powerful red, green and blue laser beams with more than 500 built-in pre-programmed patterns and effects, making it ideal for concerts, nightclubs, DJs, festivals, stage productions, outdoor events and professional lighting shows.

Powerful 10W RGB Laser Output

 https://www.tiktok.com/@raygin.summitron/video/7693846236516093205?is_from_webapp=1&sender_device=pc

The WEINAS 10000mW RGB Laser combines three high-power laser sources:

• Green: 520nm, >3000mW
• Red: 638nm, >3000mW
• Blue: 450nm, 4000mW
• Total laser power: 10,000mW / 10W
• Laser source: DPSS

The combination of RGB wavelengths produces vivid and dynamic colors suitable for professional stage and entertainment environments.

Dynamic Laser Effects

With built-in memory containing more than 500 pre-programmed patterns and effects, the WEINAS laser can create a wide range of beams, graphics and animated laser effects without requiring external programming for basic operation.

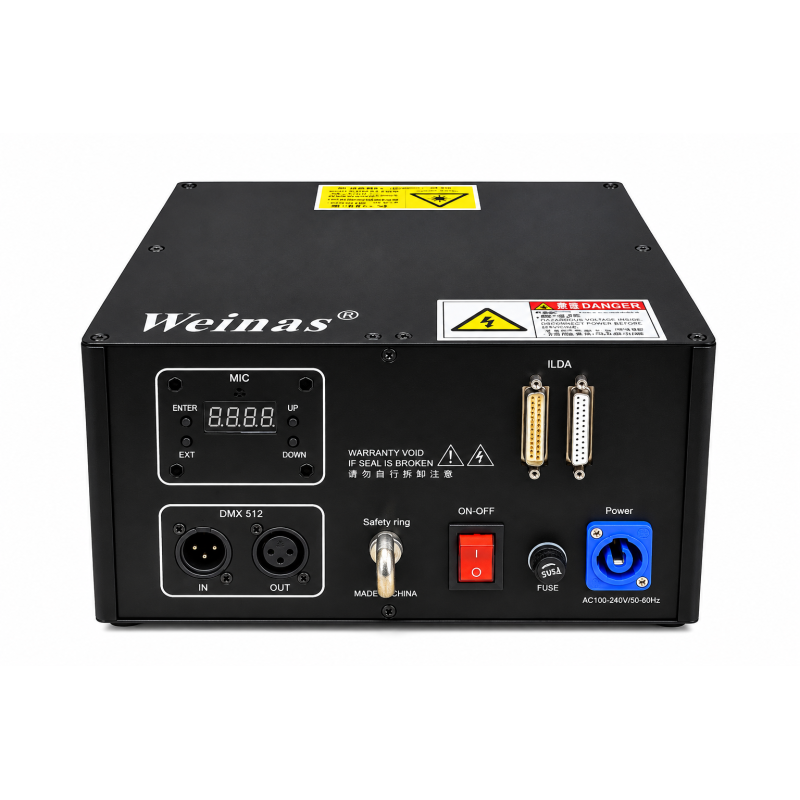

For advanced professional setups, the unit provides an ILDA interface, allowing integration with compatible laser control systems.

Fast 30Kpps Galvo Scanner

The integrated 30Kpps galvo scanner provides fast and smooth beam movement, while the 40° scan angle allows the laser effects to cover a wide area.

This makes the system suitable for:

• Concerts
• Nightclubs
• DJs
• Festivals
• Stage shows
• Corporate events
• Outdoor events
• Live performances
• Entertainment venues
• Professional lighting productions

Optional Bluetooth Control

An optional Bluetooth APP control function is available for Android devices, providing an additional convenient control option for compatible applications.

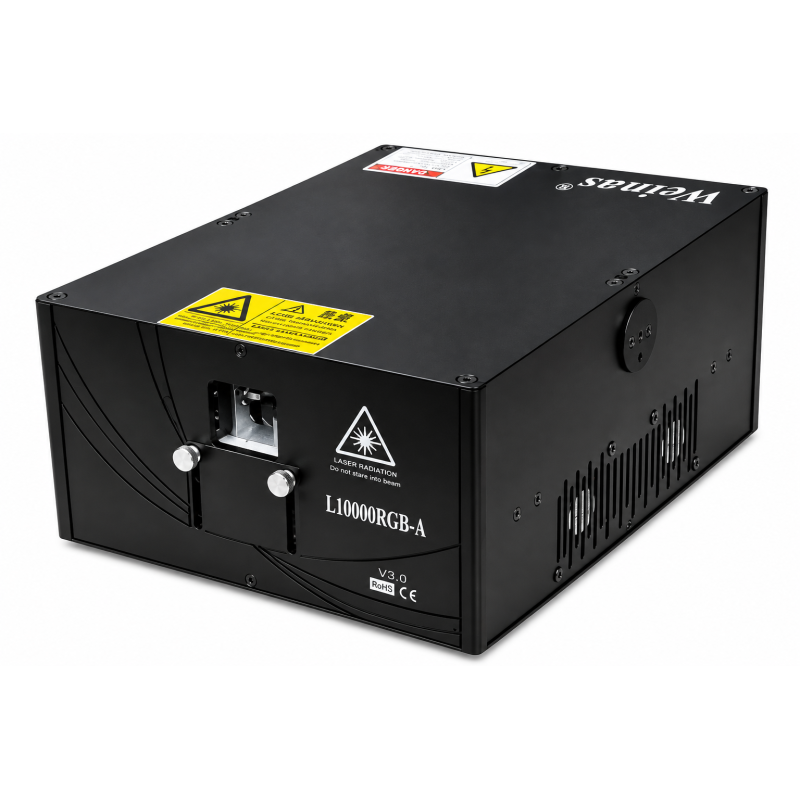

Professional Construction

The WEINAS 10000mW RGB Laser is designed for professional use, with a robust enclosure and compact footprint measuring 310 × 260 × 150mm.

Its relatively compact 8.5kg design makes it practical for installation and transportation between events.

---

Technical Specifications

Specification	Details
Total Laser Power	10,000mW / 10W
Output Power	≥10W
Green Laser	520nm, >3000mW
Red Laser	638nm, >3000mW
Blue Laser	450nm, 4000mW
Laser Source	DPSS
Beam Parameter	CA 6.8nm / 2.8mrad
Beam Size	Approx. 5.0
Galvo Scanner	30Kpps
Scan Angle	40°
Built-in Effects	500+ patterns
Interface	ILDA
Wireless Control	Optional Bluetooth APP
APP Compatibility	Android
Operating Temperature	-10°C to 35°C
Power Supply	AC 100–250V, 50/60Hz
Dimensions	310 × 260 × 150mm
Net Weight	8.5kg

Ideal For

Professional DJs • Concerts • Clubs • Festivals • Stage Shows • Outdoor Events • Live Performances • Corporate Events • Entertainment Venues

For professional laser use only. Follow applicable laser safety requirements and operating procedures.

Frequently Asked Questions – WEINAS 10000mW RGB Laser

1. What is the WEINAS 10000mW RGB Laser?

The WEINAS 10000mW RGB Laser is a professional high-power RGB laser system with a total laser output of 10,000mW (10W). It combines red, green and blue laser sources to create bright beams, patterns and dynamic effects for professional entertainment and stage lighting applications.

2. How powerful is the WEINAS 10W RGB Laser?

The laser has a total output of 10,000mW (10W) or more. Its RGB laser sources include:

• Green: 520nm, >3000mW
• Red: 638nm, >3000mW
• Blue: 450nm, 4000mW

This combination provides high-output RGB laser effects for professional entertainment applications.

3. What can the WEINAS 10000mW laser be used for?

The laser is designed for professional entertainment and lighting applications, including:

• Concerts
• Festivals
• Nightclubs
• DJ performances
• Stage shows
• Outdoor events
• Live performances
• Corporate events
• Entertainment venues
• Professional lighting productions

4. What colors does the WEINAS RGB laser produce?

The laser uses three primary laser wavelengths:

Red – 638nm
Green – 520nm
Blue – 450nm

By combining these three sources, the system can create a wide range of RGB colors and effects.

5. Does the WEINAS laser have built-in effects?

Yes. The unit has built-in memory with more than 500 pre-programmed patterns and effects, allowing users to create different laser shows without having to program every effect manually.

6. What is the scanning speed of the WEINAS laser?

The WEINAS 10000mW RGB Laser uses a 30Kpps galvo scanner.

The 30Kpps scanning system allows the laser to produce fast-moving beams, patterns and graphics suitable for professional entertainment applications.

7. What is the scan angle?

The WEINAS laser has a 40° scan angle, allowing the projected laser effects to cover a wide area.

8. Does the WEINAS 10W laser support ILDA?

Yes. The laser includes an ILDA interface for connection to compatible professional laser control systems.

ILDA control can be used for more advanced laser programming, graphics and professional show control.

9. Does it have Bluetooth control?

An optional Bluetooth APP control function is available for compatible units. The APP control is designed for Android devices.

10. What type of laser source does it use?

The WEINAS 10000mW RGB Laser uses a DPSS laser source.

DPSS stands for Diode-Pumped Solid-State, a laser technology commonly used in professional laser systems.

11. What is the beam size of the laser?

The specified beam size is approximately 5.0, with beam parameters of CA 6.8nm / 2.8mrad.

12. What power supply does the laser use?

The WEINAS laser supports:

AC 100–250V, 50/60Hz

This wide input-voltage range makes it suitable for use with different electrical systems when operated with the appropriate local power connection.

13. What is the operating temperature?

The specified operating temperature is:

-10°C to 35°C

For reliable performance, the unit should be installed and operated in an environment within the manufacturer's specified temperature range.

14. How big is the WEINAS 10000mW laser?

The product dimensions are:

310 × 260 × 150mm

Its compact enclosure makes it practical for professional event production, installation and transportation.

15. How much does the WEINAS 10W laser weigh?

The net weight is approximately:

8.5kg

16. Is the WEINAS 10000mW laser suitable for concerts?

Yes. Its 10W RGB output, 30Kpps scanner, 40° scan angle, built-in effects and ILDA interface make it suitable for professional concert and stage-lighting applications, subject to appropriate venue and laser-safety requirements.

17. Is this laser suitable for DJs and nightclubs?

Yes. The high-power RGB output and built-in patterns make it suitable for DJ shows, nightclubs, entertainment venues and live performances.

18. Can the WEINAS laser create laser graphics?

Yes. With its ILDA interface and 30Kpps scanning system, the unit can be integrated with compatible laser-control software and hardware for more advanced graphics and programmed laser shows.

19. Is the WEINAS 10W laser suitable for outdoor events?

It can be used for suitable outdoor entertainment applications when properly installed and protected from environmental conditions. Outdoor laser use requires additional consideration of laser safety, audience exposure, installation and local regulations.

20. Is the WEINAS 10000mW RGB Laser safe to use?

This is a high-power professional laser system and should only be operated by appropriately trained personnel following applicable laser-safety requirements.

The laser should never be aimed directly at people, aircraft, vehicles or other hazardous targets. Appropriate safety procedures, installation practices and regulatory requirements must be followed.
