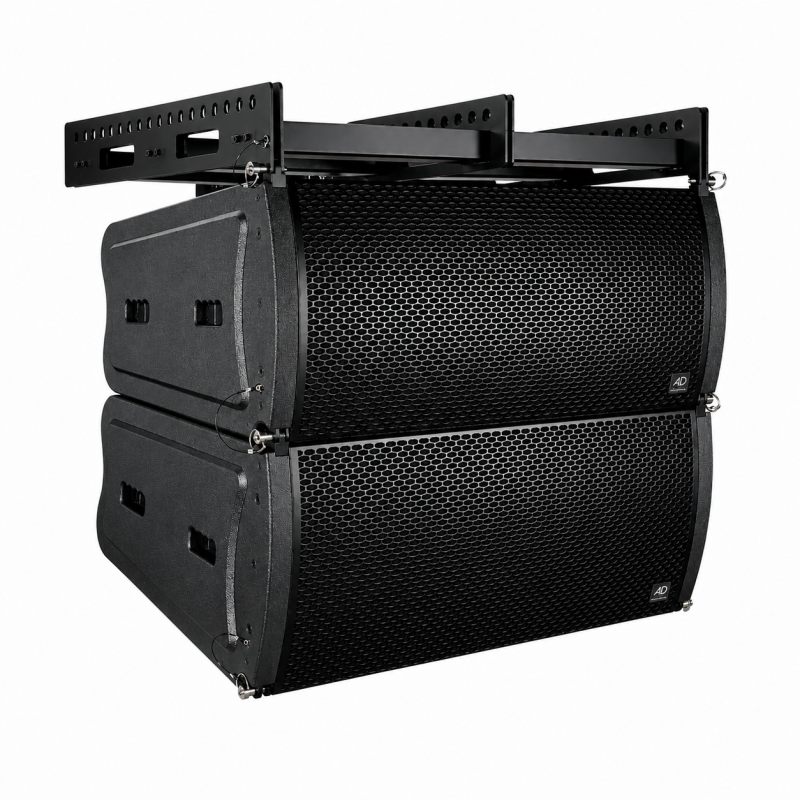

4-acoustic PCS-212L Professional Dual 12-Inch 3-Way Line Array Speaker

4-acoustic PCS-212L Three-Way Professional Line Array Module

The 4-acoustic PCS-212L is a premium three-way professional line array module engineered for large-scale sound reinforcement where exceptional clarity, high output, and precise coverage are essential. Designed for touring productions, concert venues, stadiums, churches, theaters, convention centers, and rental companies, the PCS-212L delivers powerful performance with outstanding speech intelligibility and musical accuracy.

Featuring dual 12-inch neodymium woofers, four 6.5-inch neodymium midrange drivers, and dual 1.4-inch neodymium compression drivers, the PCS-212L produces deep low frequencies, highly detailed midrange, and crystal-clear high frequencies with exceptional consistency across the audience area.

Its advanced line array horn provides a 120° horizontal x 10° vertical coverage, ensuring uniform sound distribution while minimizing unwanted reflections. The precision rigging system allows adjustable splay angles from 0° to 10° in 1° increments, enabling system designers to optimize coverage for venues of virtually any size.

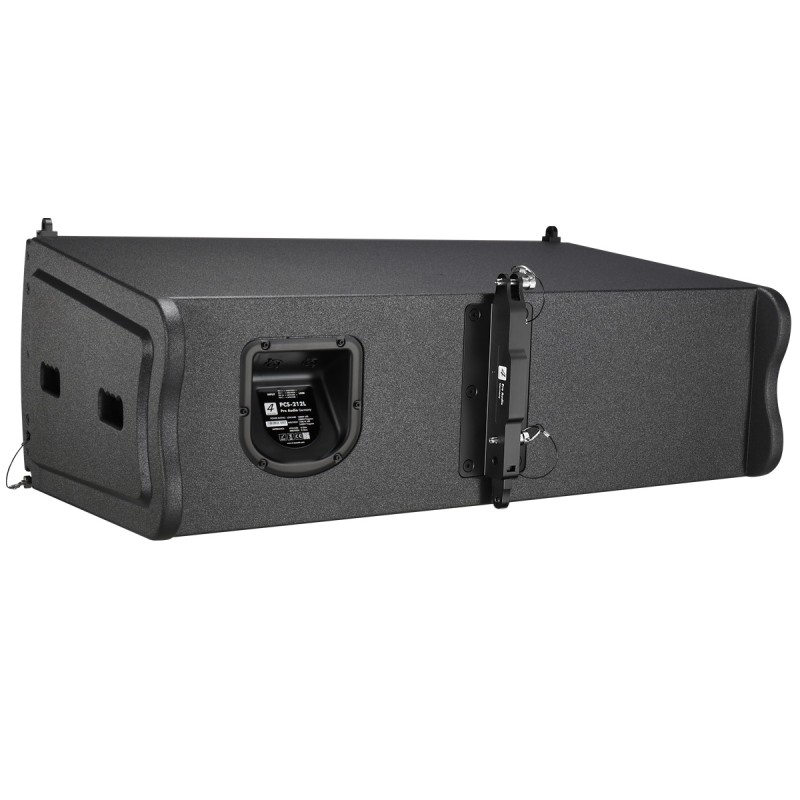

Built with a rugged Baltic birch multiplex enclosure and finished in a waterproof, impact-resistant Polyurea coating, the PCS-212L is designed to withstand the demands of professional touring and permanent installations. Heavy-duty aluminum flyware, integrated carrying handles, and Neutrik NL4 connectors make installation fast, reliable, and efficient.

Despite its powerful three-way design, the PCS-212L operates as a 2-way bi-amp system, requiring only two amplifier channels, reducing system complexity while maintaining exceptional audio performance.

Whether deployed in a compact array or as part of a ten-module flown system, the PCS-212L delivers the power, precision, and reliability demanded by today's professional sound engineers.

Key Features

• Premium 3-way professional line array module
• Dual 12-inch neodymium low-frequency drivers
• Four 6.5-inch neodymium midrange drivers
• Dual 1.4-inch neodymium compression drivers with 2.5-inch voice coils
• High output up to 137 dB Max SPL
• Wide 120° horizontal coverage for even audience distribution
• Adjustable rigging angles from 0° to 10°
• Rugged Baltic birch plywood enclosure
• Waterproof and impact-resistant Polyurea finish
• Heavy-duty aluminum flying hardware
• Operates as a convenient 2-way bi-amplified system
• Ideal for touring, rental, houses of worship, theaters, arenas, and large event venues
