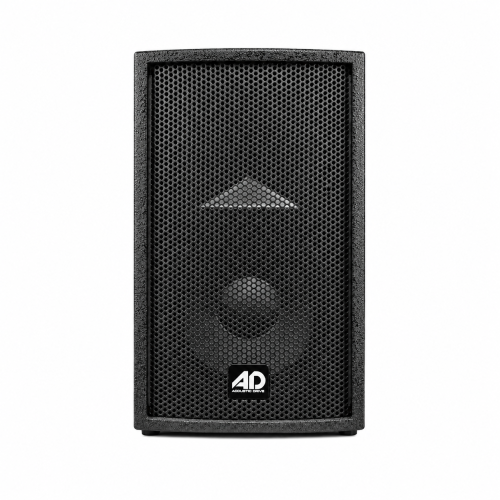

AD AQ-08 Professional Installation Speaker

Compact Design. Exceptional Clarity. Built for Everyday Professional Audio.

The AD AQ-08 is a professional 8-inch passive installation loudspeaker designed to deliver outstanding speech intelligibility, natural music reproduction, and reliable performance for commercial and fixed audio installations. Combining a compact enclosure with high-efficiency components, the AQ-08 provides impressive output while blending seamlessly into any environment.

Featuring an 8-inch low-frequency driver and a 35mm high-frequency compression driver, the AQ-08 produces balanced, detailed sound with excellent vocal clarity and smooth music reproduction. With 200W continuous power handling, 400W peak power, 96dB sensitivity, and a maximum SPL of 126dB, it delivers more than enough performance for small to medium-sized venues.

The controlled 60° × 40° dispersion pattern ensures even sound coverage, making the AQ-08 ideal for speech reinforcement, background music, and live presentations. Its durable textured enclosure is built for years of dependable operation in permanent installations.

Whether used individually or as part of a distributed sound system, the AD AQ-08 offers professional performance, simple installation, and exceptional value.

Key Features

Professional 8-Inch Installation Speaker

Designed for commercial audio systems requiring excellent speech clarity and balanced music performance.

High Power Handling

Rated at 200W continuous with 400W peak power, providing dependable performance for everyday professional use.

Excellent Speech Intelligibility

Optimized for announcements, presentations, worship services, and conferences where vocal clarity is essential.

Smooth Music Reproduction

Produces warm, natural sound with detailed highs and balanced midrange, making it ideal for background music and live audio.

Wide and Controlled Coverage

The 60° × 40° dispersion delivers even sound distribution while minimizing unwanted reflections.

High-Efficiency Design

With 96dB sensitivity and a maximum SPL of 126dB, the AQ-08 delivers impressive output with excellent amplifier efficiency.

Durable Professional Construction

Built with a rugged textured cabinet designed to withstand years of continuous commercial use.

Easy Installation

Compact enclosure allows flexible mounting in a wide variety of permanent installation applications.

Technical Specifications

• Model: AD AQ-08
• System Type: 2-Way Passive Installation Speaker
• LF Driver: 8-inch Woofer
• HF Driver: 35mm Compression Driver
• Continuous Power Handling: 200W
• Peak Power: 400W
• Nominal Impedance: 8 Ohms
• Frequency Response: 65Hz – 20kHz
• Sensitivity: 96dB (1W/1m)
• Maximum SPL: 126dB
• Coverage Pattern: 60° Horizontal × 40° Vertical

Ideal Applications

• Churches & Chapels
• Restaurants & Cafés
• Hotels & Resorts
• Schools & Universities
• Conference Rooms
• Meeting Rooms
• Retail Stores
• Function Halls
• Offices
• Commercial Audio Installations

The AD AQ-08 is the perfect solution for professional installers looking for a compact loudspeaker that delivers excellent sound quality, reliable performance, and long-term durability in commercial and fixed installation environments.
