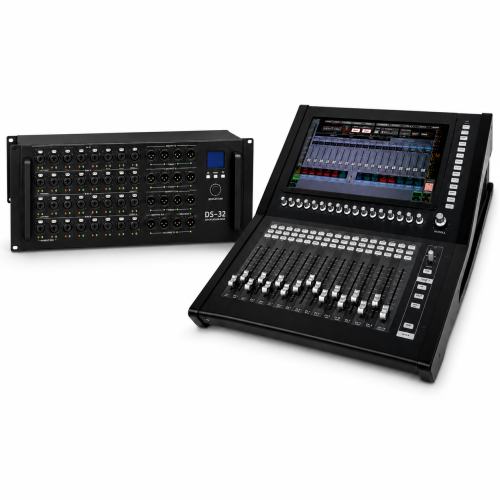

AD QUANTUM32 Professional 32-Channel Digital Mixing Console with Touchscreen & DS-32 Digital Snake

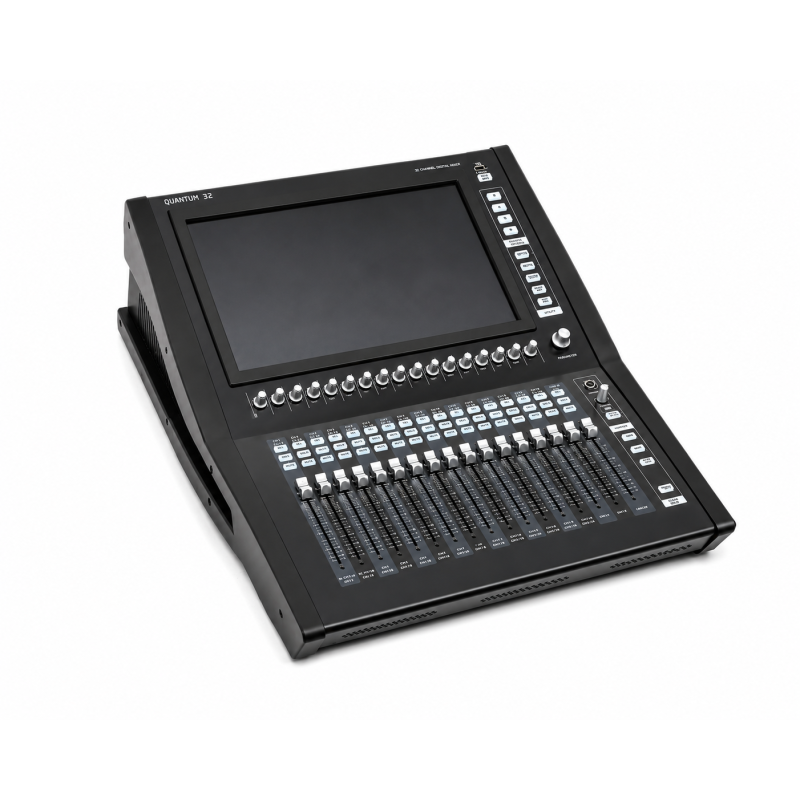

Take complete control of your live sound with the AD QUANTUM32, a powerful professional digital mixing console designed for concerts, churches, hotels, corporate events, touring productions, recording, and fixed installations. Combining an intuitive 15.6-inch Full HD touchscreen, motorized faders, advanced DSP processing, and seamless remote control, the QUANTUM32 delivers exceptional audio quality and professional workflow in any environment.

Designed for engineers who demand flexibility and reliability, the QUANTUM32 supports both local inputs and the DS-32 32-channel Digital Stage Box, allowing you to expand your system while simplifying stage wiring through a single network connection.

Key Features

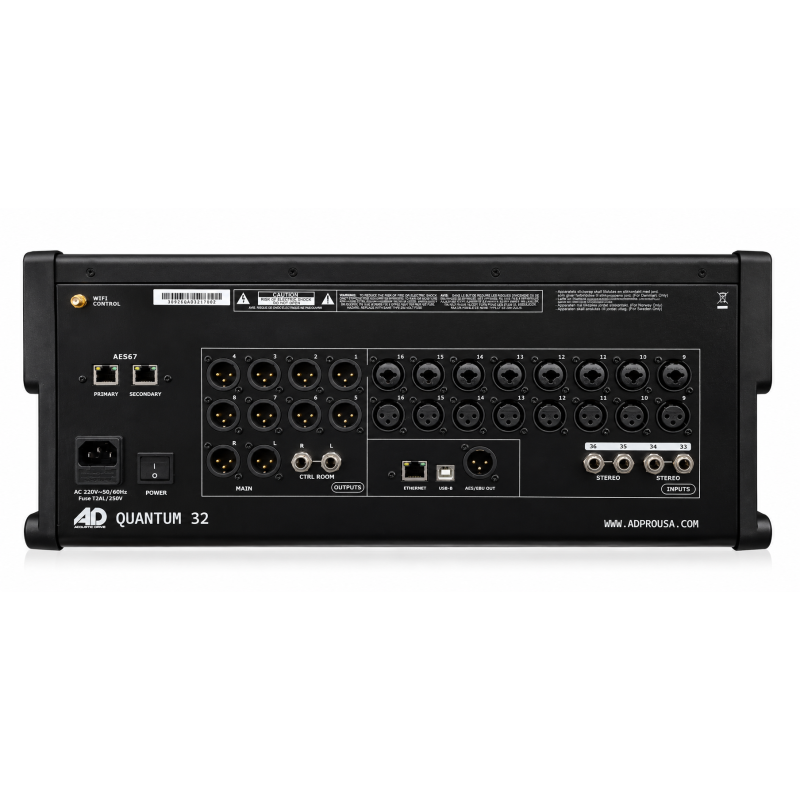

• 24 local input channels
  • 16 microphone inputs (8 Combo + 8 XLR)
  • 4 stereo analog inputs
  • 4 digital stereo inputs (USB Audio & USB Playback)
• Compatible with DS-32 Digital Snake providing 32 remote microphone inputs and 14 BUS outputs

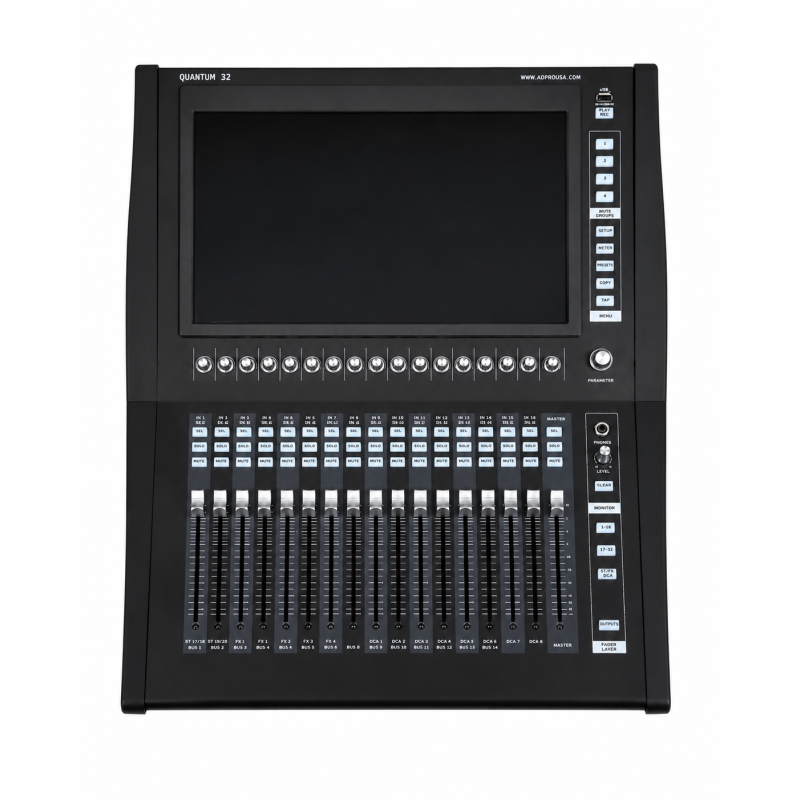

• 15.6-inch Full HD (1920 × 1080) capacitive multi-touch display
• 17 high-precision 100mm motorized faders
• Built-in Wi-Fi hotspot and Ethernet remote control
• Remote operation from Windows, macOS, Linux, iOS, and Android devices
• AES67 Digital Audio Networking support
• Professional 32-bit DSP processing
• Ultra-low latency (<3ms)
• 48kHz sampling rate
• Built-in USB audio interface for computer recording and playback
• USB flash drive stereo recording and playback
• Built-in administrator password and user permission management
• HTML5 web-based remote control with multi-device access

Professional DSP Processing

Every channel is equipped with powerful digital processing for precise sound shaping.

Input Channels

• Low Cut Filter
• 4-band Parametric EQ
• Noise Gate
• Compressor
• Phase Reverse
• Independent +48V Phantom Power
• Stereo Linking

Output Processing

• 14 BUS outputs
• Stereo Main Output
• Compressor
• PEQ
• Crossover
• Delay
• Dual assignable 31-band Graphic EQ
• Stereo linking on output buses

Built for Live Performance

The QUANTUM32 is designed to simplify demanding live productions with features including:

• 8 programmable DCA groups
• 4 programmable Mute Groups
• 4 professional stereo effects processors
• Reverb
• Delay
• Chorus
• Scene and Snapshot memory
• Channel Presets
• USB Import/Export of presets and scenes
• Channel Copy function
• Fast TAP delay control

Complete Digital Mixing Solution

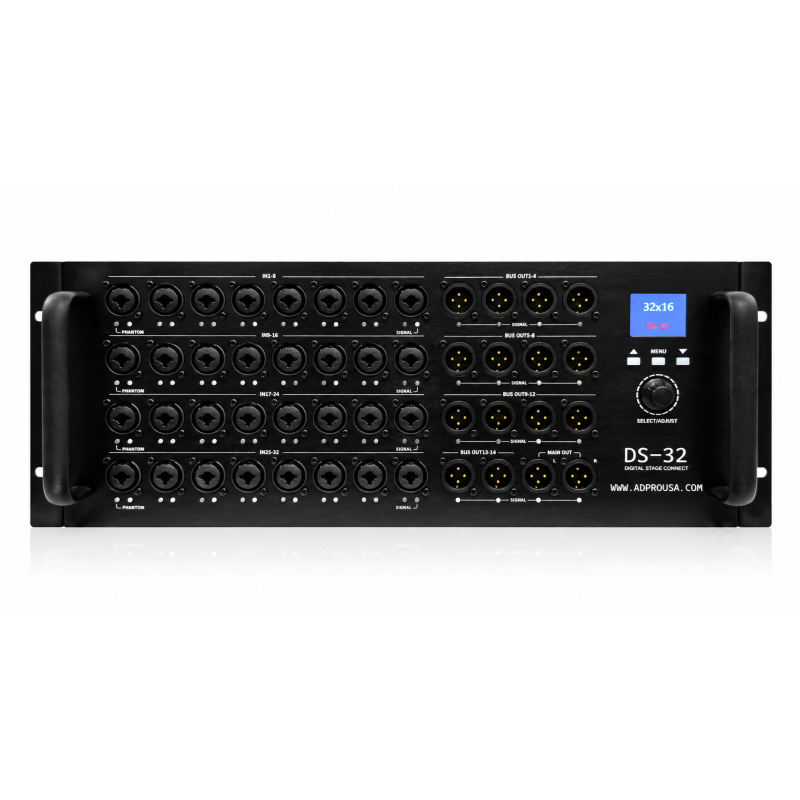

Pair the QUANTUM32 with the AD DS-32 Digital Stage Box for a clean, professional installation.

The DS-32 provides:

• 32 remote microphone inputs
• 14 BUS outputs
• Stereo Main Output
• AES67 Digital Audio Networking
• Remote pairing with the mixer
• Long-distance connection using standard CAT6 Ethernet cable

This dramatically reduces analog cabling on stage while providing maximum flexibility for large venues and touring systems.

Remote Control Anywhere

Control your mix from anywhere in the venue using:

• Windows
• macOS
• Linux
• iPhone & iPad
• Android phones & tablets

The built-in Wi-Fi hotspot and Ethernet networking allow engineers to walk the venue while making adjustments in real time, ensuring the best sound for every audience position.

Ideal Applications

• Churches
• Concerts
• Live Bands
• Hotels
• Convention Centers
• Corporate Events
• Schools & Universities
• Theaters
• Touring Productions
• Broadcast
• Recording Studios
• Rental Companies

Why Choose the AD QUANTUM32?

The AD QUANTUM32 combines premium digital audio processing, an intuitive user interface, powerful networking capabilities, and expandable stage connectivity into one professional mixing platform. Whether you're mixing a worship service, a concert, or a major corporate production, the QUANTUM32 delivers the performance, flexibility, and reliability demanded by today's audio professionals.
