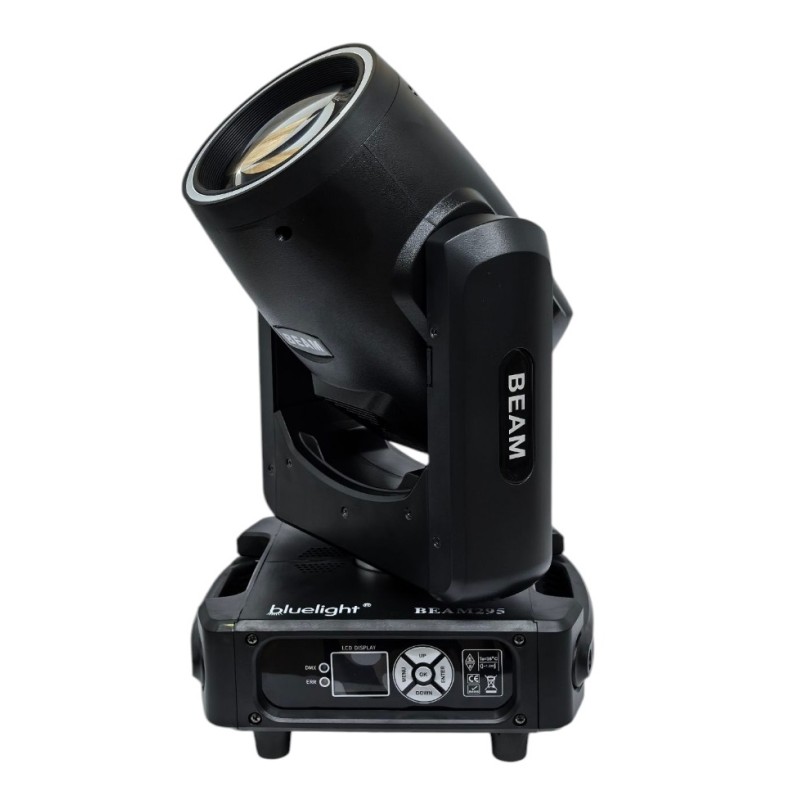

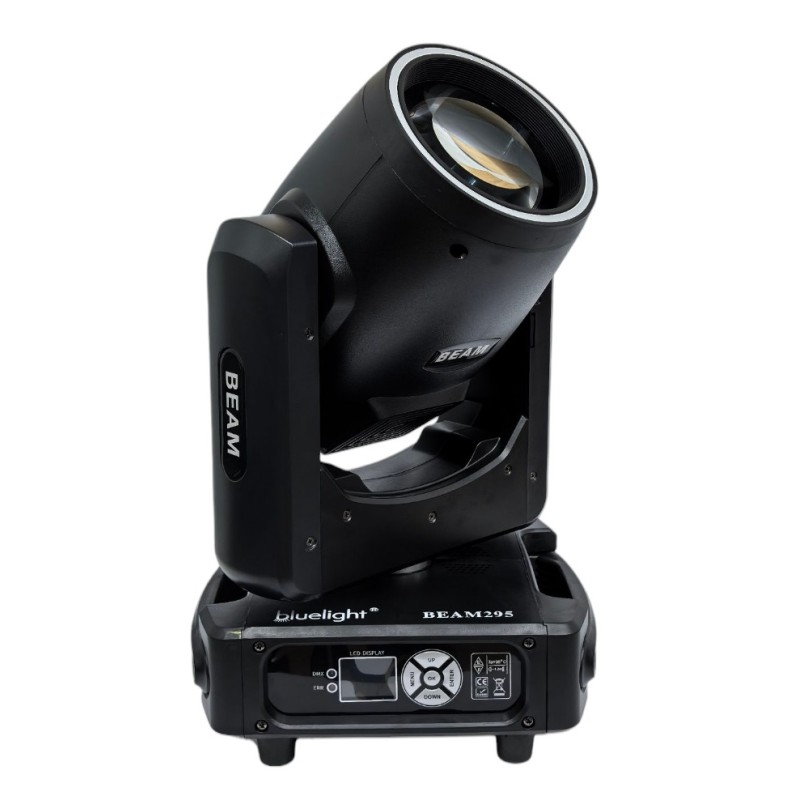

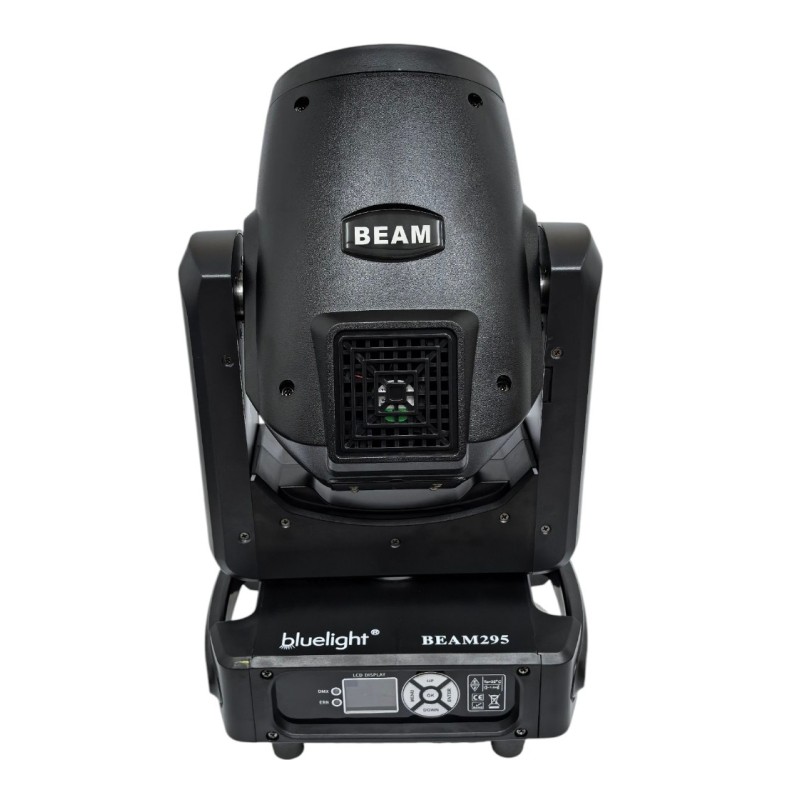

CHANNEL FUNCTION
|
CHANNEL |
FUNCTION |
DMX VALUE |
DESCRIPTION |
|
CH1 |
Color
Wheel |
0-4 |
WHITE |
|
5-9 |
WHITE
+COLOUR1 |
||
|
10-14 |
COLOUR1 |
||
|
15-19 |
COLOUR1
+ COLOUR2 |
||
|
... |
... |
||
|
130-134 |
COLOUR13 |
||
|
135-139 |
COLOUR13
+ WHITE |
||
|
140-190 |
Ratation
from Fast to slow |
||
|
191-255 |
Ratation
from slow to fast |
||
|
CH2 |
Strobe |
0-3 |
closed |
|
4-103 |
Strobe
from slow to fast |
||
|
104-107 |
Open |
||
|
108-207 |
Pulsaton
from slow to fast |
||
|
208-212 |
Open
|
||
|
213-251 |
Random
strobe from slow to fast |
||
|
252-255 |
Open |
||
|
CH3 |
Dimmer |
0-255 |
0-100%
dimmer |
|
CH4 |
Gobo |
0-4 |
WHITE |
|
5-9 |
GOBO
1 |
||
|
|
